Stainless steel reels

- Ready to use set – with connection hose
- Durable design
- Easy to clean

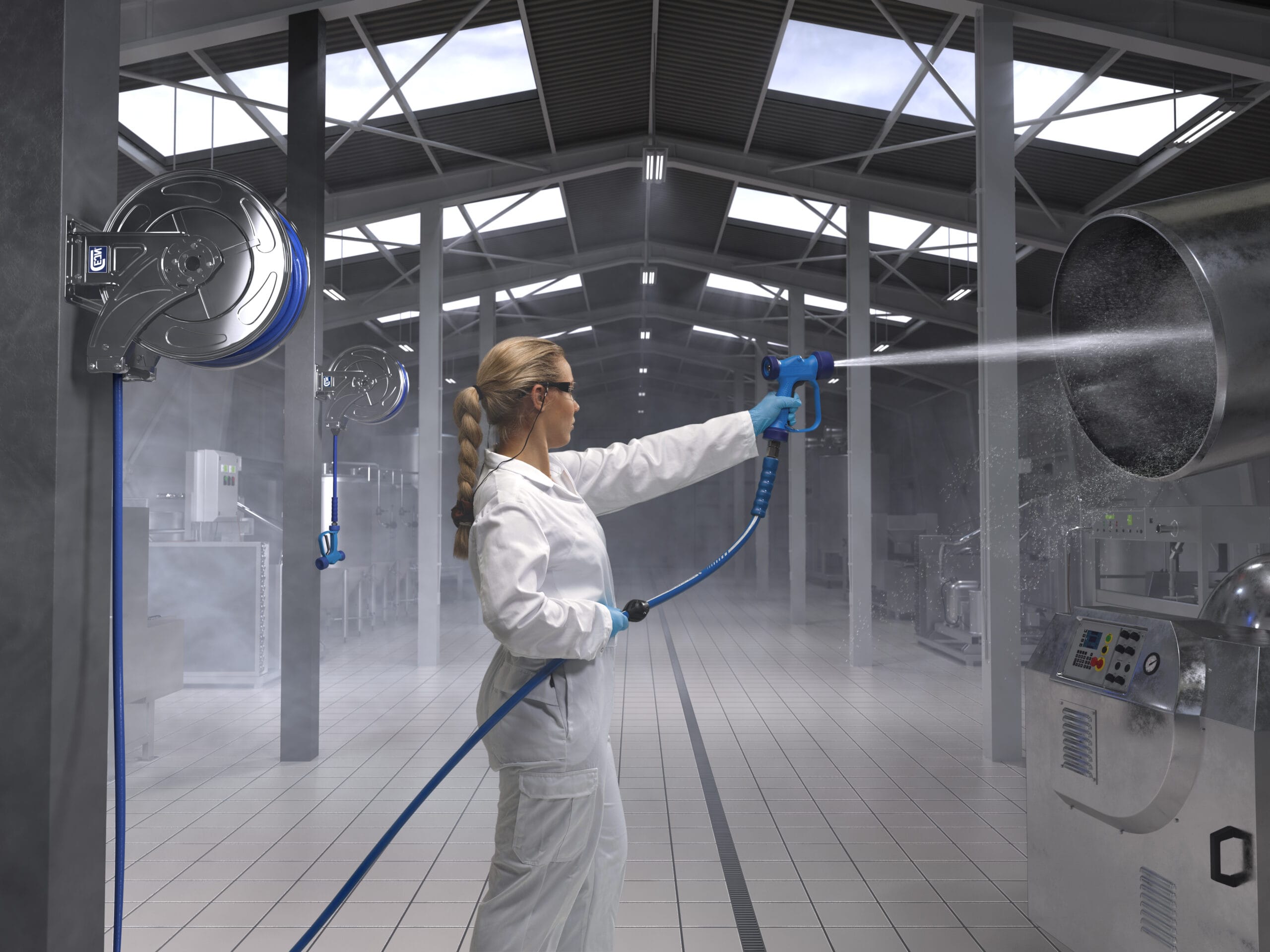

CEJN`s Washdown reels in stainless-steel are ideal for increasing safety and efficiency in corrosive or harsh environments such as near saltwater or in applications that require a high level of hygiene. A spring return mechanism to keep the hose off the floor prevents tripping hazards and makes the storage easier and faster after use in all types of washdown operations. ¨The reel is available with or without hose. There is two hose materials available: PVC or rubber. The rubber hose is made of PVC-free quality rubber and is electrically conductive. It provides good abrasion resistance and is resistant to ozone, oil and rough weatherCEJN´s Washdown reels feature a “food-friendly” PVC hose, a high-quality spring, 4-rollers hose guide and a swivel that is placed outside the shaft for easy installation and maintenance. The hose is suitable for use with hot water and applications where food safety is required. Very flexible, easy to clean and can withstand detergents and chemical products. To simplify for the customer comes CEJN`s Washdown reels in AISI 304 with a main and connection hose, just add a spray gun and you have a complete set perfectly suited for your washdown application needs.
Technical data
Feeder hose lenght: 1 m
Reel material: Stainless steel (AISI 304)
Hose material: PVC
Temperature range (hose): 5°C — +70°C (41°F — +158°F)
Temperature range (reel): 5°C — +100°C (41°F — +212°F)
Diameter of the reel: 442mm
Width of the reel: 243mm tai 380mm
More tools are featured in tool catalog.
Technical data:
Material of the reel: Stainless steel (AISI 304)
Product code | Connection outlet | Width of the reel | Hose material | Hose lenght | Max. pressure (25°C) |
19 913 1016 | G 1/2″ male | 192 mm | PVC | 15 m | 20 bar |
19 913 1120 | G 1/2″ male | 243 mm | PVC | 20 m | 20 bar |
19 913 1220 | G 3/4″ male | 380 mm | PVC | 20 m | 20 bar |
19 913 1100 | G 1/2″ male | 243 mm | no hose | max. 20 m ½” | 40 bar |
19 913 1200 | 19 mm hose fitting | 380 mm | no hose | max. 20 m ¾” | 15 bar |
19 913 1035 | G 1/2″ male | 192 mm | NBR | 15 m | 18 bar |
19 913 1065 | G 3/8″ male | 192 mm | NBR | 15 m | 400 bar |
19 913 1136 | G 3/4″ male | 243 mm | NBR | 15 m | 18 bar |
19 913 1140 | G 1/2″ male | 243 mm | NBR | 20 m | 18 bar |
19 913 1240 | G 3/4″ male | 380 mm | NBR | 20 m | 18 bar |
Material of the reel: Stainless steel (AISI 316)
Product code | Connection outlet | Width of the reel | Hose material | Hose lenght | Max. pressure (25°C) |
19 913 2100 | G 1/2″ male | 243 mm | no hose | – | 400 bar |
19 913 2120 | G 1/2″ male | 243 mm | PVC | 20 m | 20 bar |
19 913 2200 | G 3/4″ male | 380 mm | no hose | – | 40 bar |
19 913 2220 | G 3/4″ male | 380 mm | PVC | 20 m | 20 bar |
