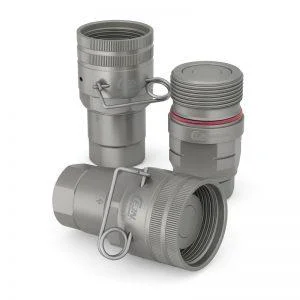

Series 807 TLX – 1 ¼”

TLX is a flat-face twist lock coupling for the toughest applications in the construction and demolition segment. This super-duty quick connect coupling is designed to work with the highest surge flows and the toughest pressure impulses. TLX is made from high alloy steels with Zinc-Nickel surface treatment for a long life in the harshest conditions. The Series is available in sizes from ½” to 1½” to cover most applications.



The couplings and nipples are also available in 4 other sizes: ½” (Series 507), ¾” (Series 607), 1” (Series 707) and 1 ½” (Series 907).

More tools are featured in tool catalog.

Technical data:

Couplings Part No. Connection
Female thread 10 807 1104 Rc 1 1/4″
10 807 1204 G 1 1/4″
10 807 1205 G 1 1/2″
10 807 1234 G 1 1/4″ JIS ORB
10 807 1404 1 1/4″ NPT
10 807 1604 1 5/8″-12 UN – (1 1/4″ SAE)
Nipples Part No. Connection
Female thread 10 807 6104 Rc 1 1/4″
10 807 6204 G 1 1/4″
10 807 6205 G 1 1/2″
10 807 6234 G 1 1/4″ JIS ORB
10 807 6404 1 1/4″ NPT
10 807 6604 1 5/8″-12 UN – (1 1/4″ SAE)
