Series 907 TLX – 1 ½”

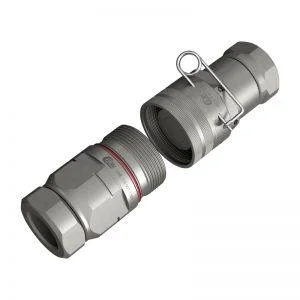

TLX is a flat-face twist lock coupling for the toughest applications in the construction and demolition segment. This super-duty quick connect coupling is designed to work with the highest surge flows and the toughest pressure impulses. TLX is made from high alloy steels with Zinc-Nickel surface treatment for a long life in the harshest conditions. The Series is available in sizes from ½”” to 1 ½” to cover most applications.
The couplings and nipples are also available in 4 other sizes: ½” (Series 507) ¾” (Series 607) 1” (Series 707) and 1¾” (Series 807).
Technical data
| Flow rate: | 740 l/min (162.8 GPM) @ 3bar ΔP ** |
| Temperature range: | -30°C — +100°C (-22°F — +212°F) |
| Material coupling: | High alloy steels with Zinc-Nickel surface |
| Material nipple: | High alloy steels with Zinc-Nickel surface |
| Material seal: | Nitrile (NBR) |
| Max. working pressure connected: | 380 bar (5511 PSI) |
| Max. working pressure disconnected: | 380 bar (5511 PSI) |
| Min. burst pressure connected: | 1520 bar (22045 PSI) |
| Min. burst pressure disconnected: | 1000 bar (14503 PSI) |
| Connectability: | Connection with residual pressure only limited by operator strength |
| Disconnection under pressure: | Disconnection with residual pressure in the system is allowed |
(**) – If the application is constantly above this flow rate on respective coupling size, a larger coupling size should be considered to avoid too high pressure drop. The couplings can handle much higher flow rate during short time periods, but there is a risk of heat build-up in the system. Surge flows far above normal flow rate is in general not a problem.
– TLX is pressure impulse tested at 475 bar (6889 psi) for 1.000.000 impulses acc. to ISO 7241-2. (Flow Rate) – If the application is constantly above this flow rate on respective coupling size, a larger coupling size should be considered to avoid too high pressure drop. The couplings can handle much higher flow rate during short time periods, but there is a risk of heat build-up in the system. Surge flows far above normal flow rate is in general not a problem.
More tools are featured in tool catalog.
Similar products:
Technical data:
| Couplings | Part No. | Connection |
| Female thread | 10 907 1105 | Rc 1 1/2″ |
| 10 907 1205 | G 1 1/2″ | |
| 10 907 1207 | G 2″ | |
| 10 907 1235 | G 1 1/2″ JIS ORB | |
| 10 907 1405 | 1 1/2″ NPT | |
| 10 907 1407 | 2″ NPT | |
| 10 907 1605 | 1 7/8″-12UN – SAE 1 1/2″ ORB | |
| 10 907 1607 | 2 1/2″-12UN – SAE 2″ ORB | |
| Nipples | Part No. | Connection |
| Female thread | 10 907 6105 | Rc 1 1/2″ |
| 10 907 6205 | G 1 1/2″ | |
| 10 907 6207 | G 2″ | |
| 10 907 6235 | G 1 1/2″ JIS ORB | |
| 10 907 6405 | 1 1/2″ NPT | |
| 10 907 6407 | 2″ NPT | |
| 10 907 6605 | 1 7/8″-12UN – SAE 1 1/2″ ORB | |
| 10 907 6607 | 2 1/2″-12UN – SAE 2″ ORB | |
